Network Organization

Network Site
with Operator/Dispatcher Control

MANET network site with operator and dispatcher control, MS2.0 Gateway, Monitoring & Control Software, MU3 radio and repeater, and MU7 handheld radio.

Network Site
with RoIP (Radio-over-IP) Network access

MANET Mesh Radio Network Connected to the Internet via MS2.0 Gateway.

Consolidated Monitor & Control
over dispersed Network Sites

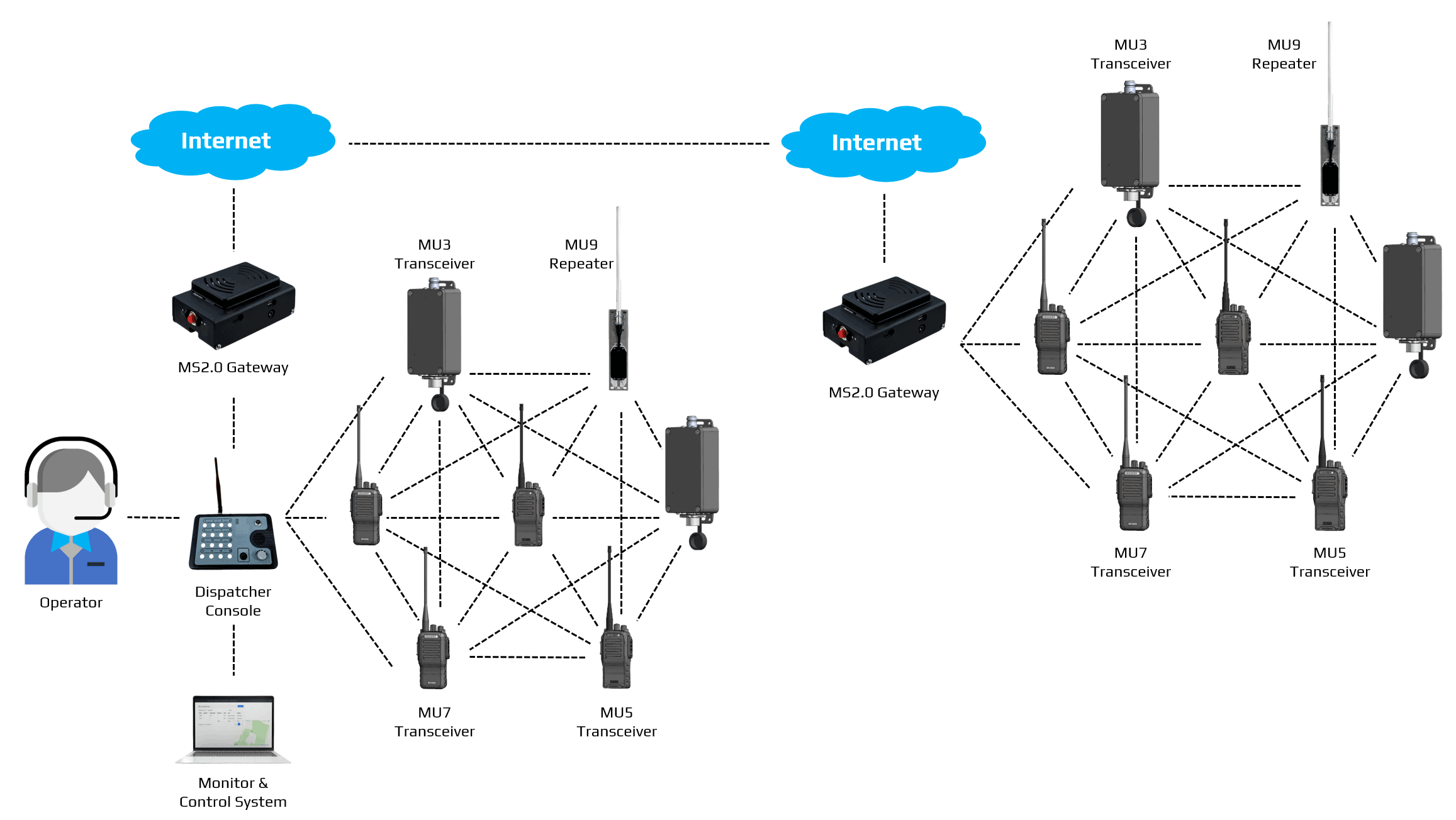

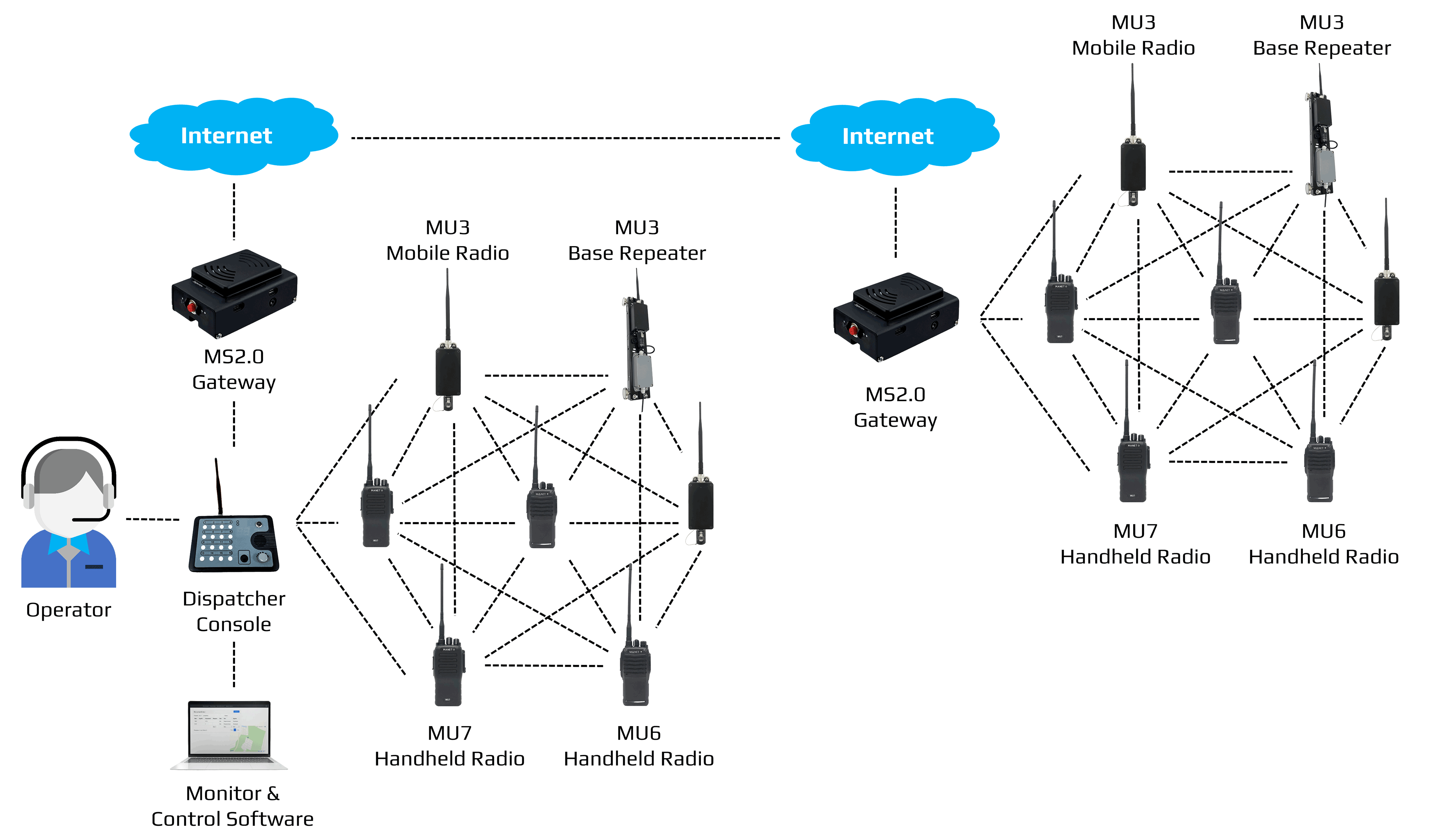

MANET mesh radio network with MU3 and MU7 radios, dispatcher control, and internet connectivity via the MS2.0 Gateway.

Integration of the Network Sites
with RoIP (Radio-over-IP) Gateways

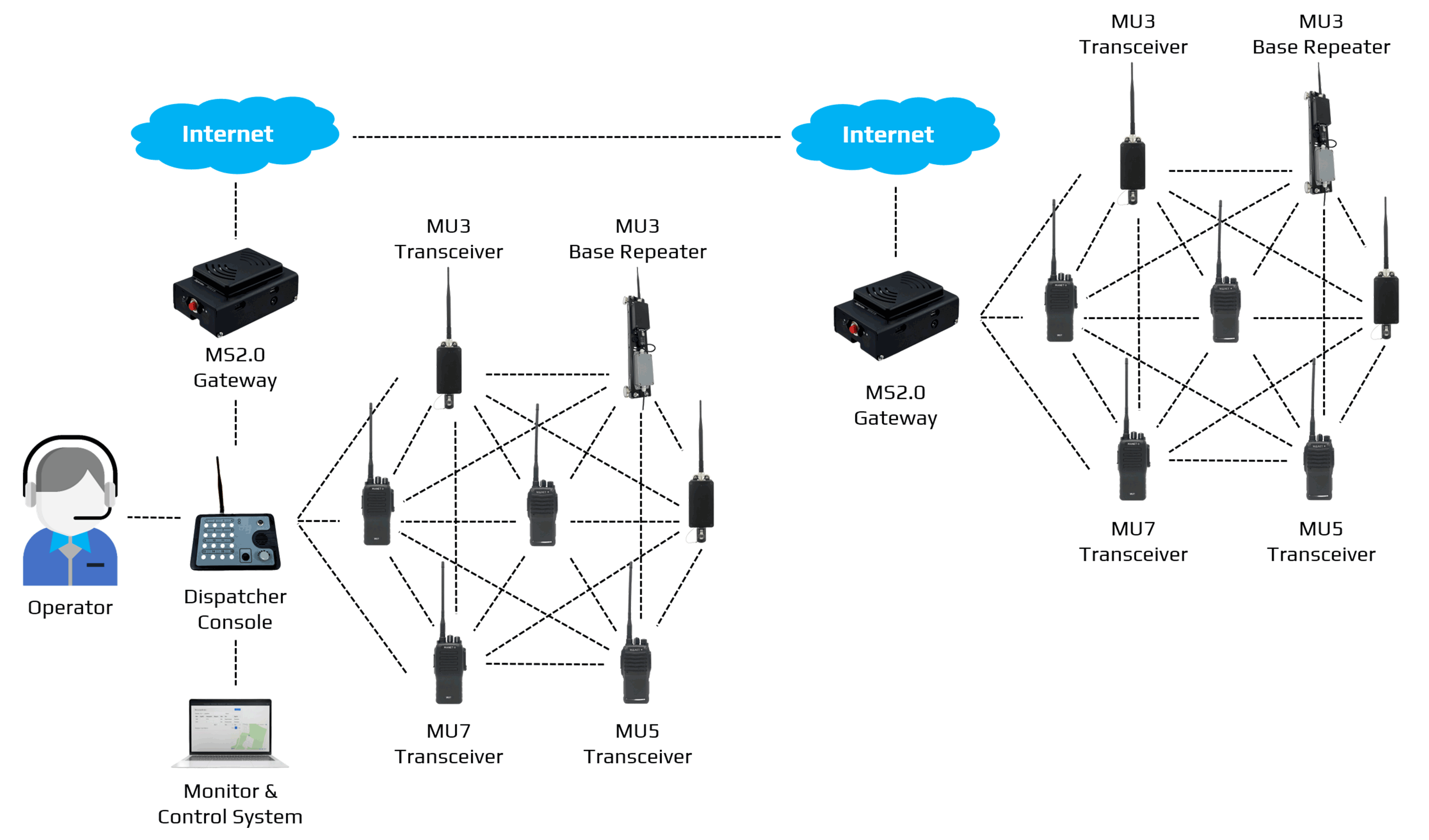

MANET mesh radio network connected to the internet through a gateway and linked to another MANET mesh radio network.

Cross Band Integration
with other Radio Networks

MANET mesh radio network connected to other analog and digital radio networks via an MU3 mobile radio and cross-band duplex repeater.
