MU3
Smart Radio Transceiver

Portable, vehicle or fixed SmartRadio for Mobile Ad Hoc Networks (MANET) with extended coverage up to 30 km.

Overview

01

License Free

02

Recording Function

03

Programmable and Customizable

04

AES256 Encrypted Communication

05

Large Capacity Channels (200 Channels in 255 Zones)
06
Voice Prompts
07
Online Detection
08
Remote Kill and Activation
09
Optional Button Functions
​10
Voice and Data Transceiver

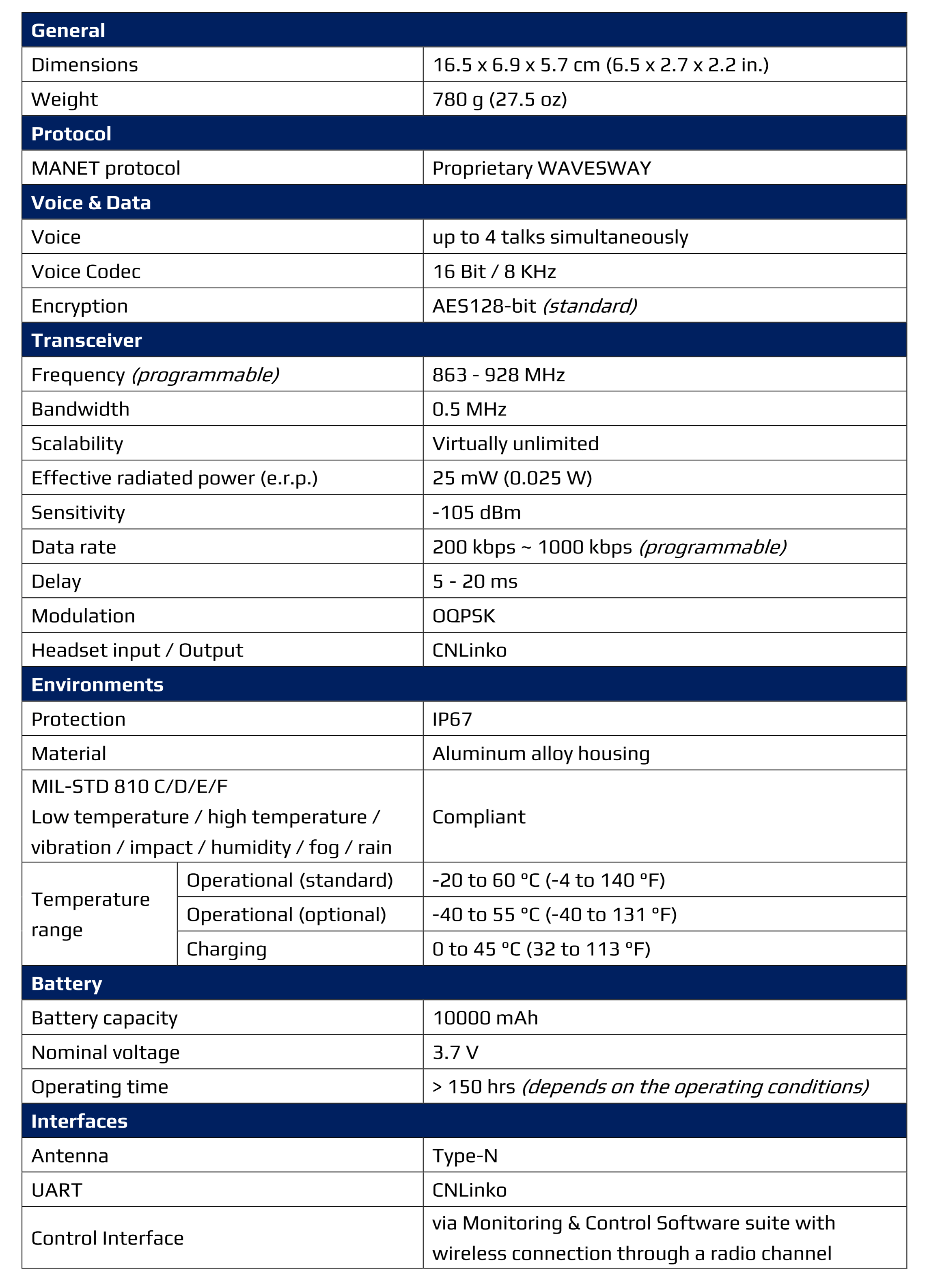

Basic Technical Characteristics

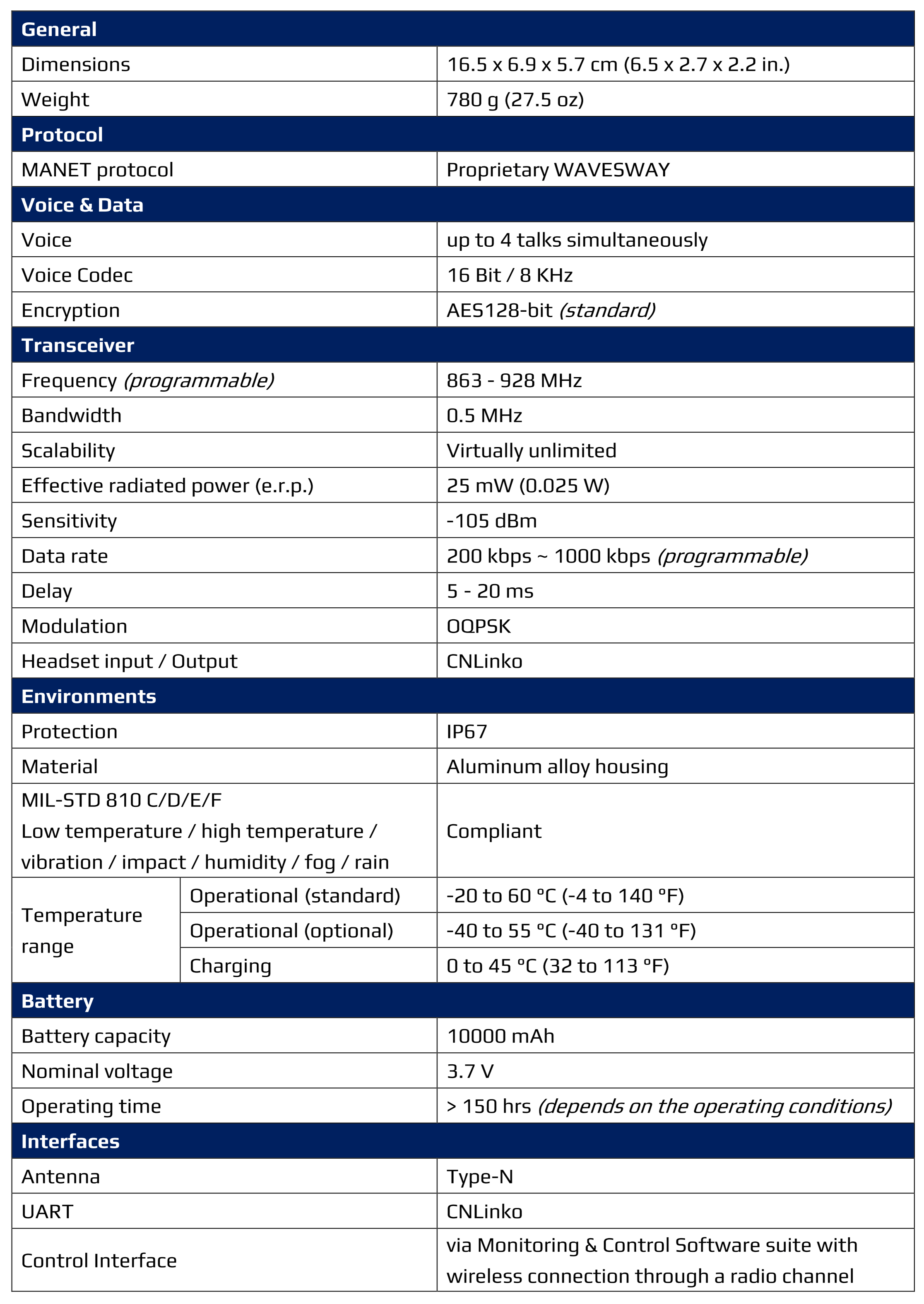

MU3 Smart Radio Transceiver Specifications
MU3 SmartRadio

The WAVESWAY MANET Radios Model MU3 creates powerful, highly secure networks for any type of environment. Bringing together data and voice (when a headset is connected) in real-time, and relaying the signal, the MU3 forms the most advanced, most scalable, and efficient Mobile Ad Hoc Network.

This small device can be used as a fixed repeater with different types of antennas, including directional ones, or as a fixed, portable or vehicle radio when a headset is connected. It has a built-in high-capacity battery and can run for up to 7 days without recharging. It can also be powered by an external power supply.

It can be easily modified into different versions of repeaters, such as a repeater for heavy duty applications, the so-called mine repeater, and a repeater for autonomous operation with a very high capacity battery and solar panel.

Long-range

Long-range

Any coverage area can be provided through network configuration. Proven coverage area of more than 10,000 square kilometers with thousands of subscribers.

Stay Connected Anywhere

Stay Connected Anywhere

With the ability to self-form and self-heal, the MU3 routes your data around obstacles by using multi-path propagation, maximising network performance, agility and mobility.

Lightweight

Lightweight

Significantly lighter than standard radio options at 21.6 oz (613g).

Profitable and economical

Profitable and Economical

It operates in the unlicensed 863-928 MHz frequency band, eliminating the need for expensive communication centers.

Operating time up to 150 hrs

Longer Mission Endurance

Up to 150 hrs per charge for standard missions. It can also be powered by an external power supply.

Scalable

Scalable

The number of subscribers and retransmissions is unlimited.

Continuous Connectivity on the Go

Continuous Connectivity on the Go

Every device on a WAVESWAY MANET Radios network communicates with each other, forming a true peer-to-peer mobile network without the need for a master node or base station. Add or take away radios from the network without losing connectivity or having to reconfigure your devices. Routing data from radio to radio enabling the network to grow, adapt and extend as more radios are added.

Secure

Secure

Secure broadcast, private, and group messaging using AES 256-bit encryption.

Rapidly Deployable

Rapidly Deployable

100% off-grid network deployment for teams in minutes. No base stations needed to set up a large-scale network in an hour.

Remote Control and Monitoring

Remote Control and Monitoring

Remote monitoring of location, signal strength and battery level. Programming of device parameters via radio channel.

Rugged Design for Any Environment

Rugged Design for Any Environment

Able to withstand extreme conditions in the harshest environments, meeting the highest standard ratings for temperature, shock, water and dust resistance.

Features

Main Functions

  • Half-Duplex Audio with up to 8 users talking simultaneously

  • 2W crystal clear audio

  • Up to 1.2 km communication range between transceivers

  • Up to 20 km communication range between repeaters/transceivers with attached omni-directional antenna

  • Advanced Call Features:

    • Multiple receive groups

    • Group calling

    • Individual calling

    • Talk Groups (TG)

    • Priority & Emergency Calls

    • Call Interruption

  • Remote Radio Management:

    • Over-the-Air Programming (OTAP)

    • Over-the-Air Rekeying (OTAR)

    • Remote Kill and Activation

  • Security & Encryption:

    • AES-256 Encryption

    • Radio Authentication

  • Recording Function, Voice Prompts, Online Detection

  • Programmable customizable buttons

  • Large capacity batteries for up to 12hrs of continuous operation

  • Wide operation temperature range, from -40C~+60C

  • Individual and group charging, USB-C charging

  • Replaceable batteries and detachable antennas

Standard

MU3 SmartRadio - Transceiver

MU3
Transceiver

MM2410: AL-3.01.009 Plug Cnlinko

MM2410
AL-3.01.009 Plug Cnlinko

EM0140: AC/DC Power Adapter USB-A+C with WR0427 Charging cable

EM0140
AC/DC Power Adapter USB-A+C
with WR0427 Charging Cable

M1247SD2: Bending Antenna, Rubber

EM1247SD2
Bending Antenna, Rubber

MM2237: Magnetic mounting kit (MU3)

MM2237
Magnetic Mounting Kit (MU3)
